Pragati Metal is a leading manufacturer, supplier, stockiest and exporter of Cu 70/30 Forged Fittings. We are manufacturing a wide range of Cu 70/30 Forged Fittings in various standards and specifications as per the industrial demands. Cu 70/30 is a composition of 70 % copper and 30 % of nickel. It offers excellent corrosion and erosion resistance. This alloy has unique chemical and mechanical properties to work efficiently, even in the high-temperature range. We use this alloy for the development of forged fittings due to its high mechanical strength, workability, and toughness.

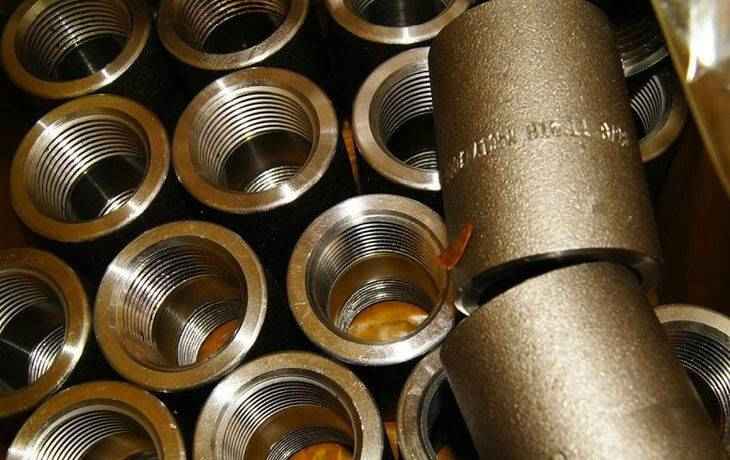

Cupro Nickel 70-30 Forged Fittings

Copper Nickel

70-30

Forged Fittings

Cu-Ni 2.0882 Forged Fittings, Cupro Nickel 70-30 Threaded Fittings, Cu-Ni C71500 Forged Fittings, ASTM B466 Cu-Ni 70/30 Socket weld Fittings, ASME SB 467 Cupro Nickel 70/30 Screwed Fittings, 70/30 Cu-Ni Forged Fittings, Cu Ni 70-30 High Pressure Forged Fittings Exporter, Cu-Ni 70-30 Forged Fittings Manufacturer in Mumbai, India

Our company is fabricating stunning quality Cu 70/30 Forged Fittings. These fittings are useful in many industrial applications such as heat exchangers, oil refineries, marine industries, paper, and pulp industries, nuclear industries, power generation plants, condensers, gas processing industries, and many more. Our fabrication team develops these forged fittings effectively using the best quality raw material. We strictly monitor each product at every step of the manufacturing process. We precisely design error-free, leakage proof, and dimensionally accurate Cu 70/30 Forged Fittings following all international standards.

Copper Nickel 70/30 Union, 70-30 Cupro Nickel Forged Equal Tee, ANSI B16.11 Cu-Ni 70/30 Forged Fittings, Cu-Ni 70-30 Socket weld Elbow, Cu Ni 70/30 Forged Pipe Cap, 70-30 Cupro Nickel Bushing, Copper Nickel 70/30 Forged Pipe Nipple, Cu Ni 70/30 Coupling, Cu-Ni 70-30 Forged Cross, Cu-Ni 70/30 Industrial Forged Fittings, Cu Ni 70/30 Forged Fittings Supplier in Mumbai.

Pragati Metal is providing an extensive range of Cu 70/30 Forged Fittings, which are popular due to their outstanding features. Some of them are high weldability, easy fabrication, robust construction, exceptional corrosion resistance, high durability, and long working life. These forged fittings are highly resistive to pitting, crevice corrosion, and stress corrosion cracking. Our quality control team conducts various types of tests to check and verify the performance of the product at each stage. They carry out the testing process as per the guidelines of international quality standards. We keep on improving the quality of products by monitoring each of them.

We have a highly developed manufacturing firm with modern tools and advanced machinery. We have a skilled and well-trained workforce having many years of experience in the development of Cu 70/30 Forged Fittings. We are providing these efficient Cu 70/30 Forged Fittings at the best possible rates for our worldwide customers. We properly pack each product using adequate material to avoid any damage during the transit. Our company is offering numerous shipping options as per the locations and demands of our esteem customers.

Cu Ni 70/30 Forged Fittings Specification

Standard ASTM B466, B467 / ASME SB466, SB467
Dimensions ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Type Socketweld Fittings, Screwed-Threaded Fittings
Class 2000 LBS, 3000 LBS, 6010 LBS, 9000 LBS

Types Of Cu Ni 70/30 Forged Fittings

Cu-Ni 70/30 Forged Elbow

Cupro Nickel 70/30 Forged Elbow

ASTM B466 Cupro Nickel 70-30 Forged Elbow, UNS C71500 Forged Elbow, 2.0882 Forged Elbow, Cu-Ni 70-30 45 deg. Socket weld Elbow Exporter, Copper Nickel 70-30 90 deg. Forged Threaded Elbow Supplier, ANSI B16.11 Cu-Ni 70/30 Forged Elbow Manufacturer in Mumbai/India.

Cu-Ni 70/30 Forged Tee

Cupro Nickel 70/30 Forged Tee

ASTM B467 Cu-Ni 70-30 Forged Tee, UNS C71500 Forged Equal Tee, 2.0882 Forged Socket weld Tee, Copper Nickel 70-30 Threaded Unequal Tee Exporter, Cupro Nickel 70/30 Forged Pipe Tee Supplier, ANSI B16.11 Cu-Ni 70/30 Forged Reducing Tee Manufacturer in Mumbai/India.

Cu-Ni 70-30 Forged Cross

Cupro Nickel 70/30 Forged Cross

ASTM B466 Cu-Ni 70-30 Forged Cross, UNS C71500 Equal Cross, 2.0882 Forged Cross, Copper Nickel 70-30 Forged Socket weld Unequal Cross Exporter, Cupro Nickel 70/30 Threaded Pipe Cross Supplier, ANSI B16.11 Cu-Ni 70-30 Forged Reducing Cross Manufacturer in Mumbai/India.

Cu-Ni Alloy 70-30 Forged Coupling

Cu Ni Forged Coupling

ASTM B466 Cupro Nickel 70-30 Forged Coupling, UNS C71500 Coupling, 2.0882 Full Coupling, Copper Nickel 70-30 Half Coupling Exporter, Cu-Ni 70/30 Forged Socket weld Coupling Supplier, ANSI B16.11 Cu-Ni 70/30 Threaded Coupling Manufacturer in Mumbai/India.

Cupro Nickel Alloy 70/30 Forged Union

Cupro Nickel 70/30 Forged Union

ASTM B466 Cu-Ni 70-30 Forged Unino, UNS C71500 Forged Union, 2.0882 Union, Cu-Ni 70-30 Socket weld Union Exporter, Copper Nickel 70-30 Threaded Forged Union Supplier, ANSI B16.11 Cupro Nickel 70-30 Forged Union Manufacturer in Mumbai/India.

Cu Ni Alloy 70-30 Forged Pipe Nipple

Cu Ni 70-30 Forged Pipe Nipple

ASTM B466 Cu Ni 70-30 Forged Pipe Nipple, UNS C71500 Forged Pipe Nipple, 2.0882 Forged Nipple, Cupro Nickel 70-30 Forged Swage Nipple Exporter, Cupro Nickel 70/30 Threaded Pipe Nipple Supplier, Copper Nickel 70/30 Forged Hex Nipple Manufacturer in Mumbai/India.

Equivalent Grades of Cupro Nickel 70/30 Forged Fittings

STANDARD WERKSTOFF NR. UNS
Copper Nickel 70/30 2.0882 C71500

Cupro Nickel 70/30 Forged Fittings Chemical Properties

Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 70/30 65.0 min 1 max .05 max 29-33 0.4-1.0 1 max

Cupro Nickel 70/30 Forged Pipe Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 70/30 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Dimensions Standard Of Cupro Nickel 70/30 Forged Fitting

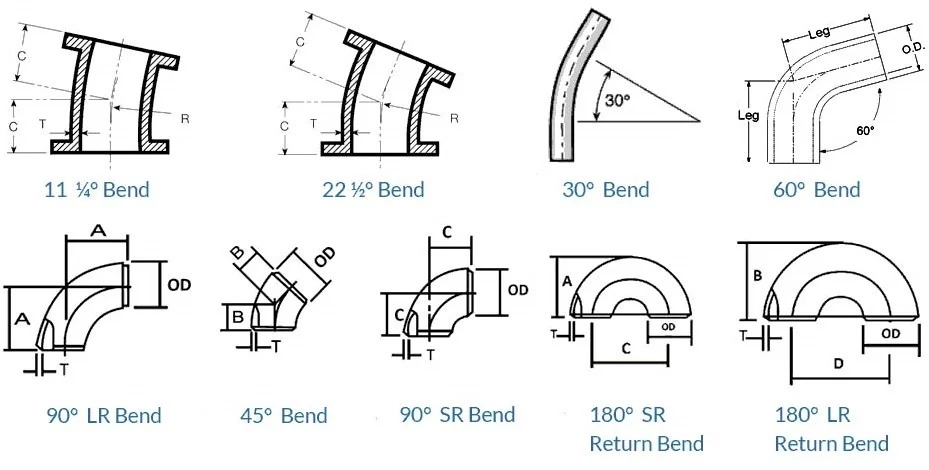

Cupro Nickel 70/30 Forged Fitting Bend Dimensions

ASME B16.9 Fittings
Nominal Pipe Size
ANSI B16.9 Pipe Fitting O.D. Y Wall Thickness T
(Pipe Elbow Sch.)
LR 45 Deg Elbows Centre to Face B SR 45 Deg Elbows Weight LR 90 Deg Elbows Centre to Face A LR 90 Deg Elbows Weight SR 90 Deg Elbows Centre to Face A SR 90 Deg Elbows Weight
mm inch mm mm Schedule mm kg mm kg mm kg
15 1/2” 21.3 2.78 STD 15.9 0.04 38.1 0.08
      3.73 X.S 15.9 0.05 38.1 0.10
20 3/4” 26.7 2.87 STD 11.1 0.04 28.6 0.08
      3.91 X.S 11.1 0.05 28.6 0.11
25 1” 33.4 3.38 STD 22.2 0.09 38.1 0.15 25.4 0.11
      4.55 X.S 22.2 0.11 38.1 0.19 25.4 0.14
32 11/4” 42.2 3.56 STD 25.4 0.14 47.6 0.28 31.75 0.18
      4.85 X.S 25.4 0.2 47.6 0.39 31.75 0.24
40 11/2” 48.3 3.68 STD 28.6 0.2 57.1 0.4 38.1 0.26
      5.08 X.S 28.6 0.25 57.1 0.5 38.1 0.35
50 2” 60.3 3.91 STD 34.9 0.36 76.2 0.72 50.8 0.5
      5.54 X.S 34.9 0.5 76.2 1.0 50.8 0.68
65 21/2” 73.0 5.16 STD 44.4 0.73 95.2 1.46 63.5 0.95
      7.01 X.S 44.4 0.91 95.2 1.82 63.5 1.27
80 3” 88.9 5.49 STD 50.8 1.1 114.3 2.18 76.2 1.45
      7.62 X.S 50.8 1.45 114.3 2.86 76.2 1.95
100 4” 114.3 6.02 STD 63.5 2.1 152.4 4.2 101.6 2.8
      8.56 X.S 63.5 2.9 152.4 5.7 101.6 3.9
125 5” 141.3 6.65 STD 79.4 3.4 190.0 6.8 127.0 4.8
      9.5 X.S 79.4 5.0 190.0 10.0 127.0 6.5
150 6” 168.3 7.11 STD 95.2 5.1 229.0 10.1 152.4 6.8
      10.97 X.S 95.2 7.7 229.0 15.3 152.4 10.2
200 8” 219.1 8.18 STD 127.0 10.2 305.0 20.4 203.0 13.6
      12.7 X.S 127.0 15.5 305.0 30.9 203.0 20.9
250 10” 273.9 9.27 STD 159.0 18.1 381.0 36.1 254.0 24.1
      12.7 X.S 159.0 24.4 381.0 48.8 254.0 32.5
300 12” 323.9 9.52 STD 190.0 26.6 457.0 53.1 305.0 35.4
      12.7 X.S 190.0 35.0 457.0 70.0 305.0 46.7
350 14” 355.6 9.52 STD 222.0 34.1 533.0 68.1 356.0 45.4
      12.7 X.S 222.0 45.0 533.0 90.0 356.0 60.0
400 16” 406.4 9.52 STD 254.0 45.0 610.0 89.3 406.0 59.5
      12.7 X.S 254.0 59.0 610.0 118.0 406.0 78.7
450 18” 457.0 9.52 STD 286.0 56.5 686.0 113.0 457.0 75.6
      12.7 X.S 286.0 75.0 686.0 150.0 457.0 100.0
500 20” 508.0 9.52 STD 318.0 85.0 762.0 140.0 508.0 93.5
      12.7 X.S 318.0 112.5 762.0 186.0 508.0 124.0
600 24” 610.00 9.52 STD 381.0 101.5 914.0 203.0 610.0 135.0
      12.7 X.S 381.0 134.5 914.0 269.0 610.0 135.0

Size Of Cupro Nickel 70/30 Forged Fitting

NPS
(inch)
Pipe Schedule. OD
(inch)
Wall
Thick.
(in)
Temperature
        100 Fitting 200 Fitting 300 Fitting 400 Fitting 500 Fitting
        Allowable Stress
        16700 16700 16700 15500 14400
1" 40 1.315 0.133 2205 2205 2205 2047 1902
  80 1.315 0.179 3061 3061 3061 2841 2640
  160 1.315 0.250 4493 4493 4493 4170 3874
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404
  80 1.900 0.200 2303 2303 2303 2138 1986
  160 1.900 0.281 3362 3362 3362 3120 2899
2" 40 2.375 0.154 1371 1371 1371 1272 1182
  80 2.375 0.218 1985 1985 1985 1843 1712
  160 2.375 0.344 3283 3283 3283 3047 2831
3" 40 3.500 0.216 1301 1301 1301 1208 1122
  80 3.500 0.300 1844 1844 1844 1712 1590
  160 3.500 0.438 2787 2787 2787 2587 2403
4" 40 4.500 0.237 1102 1102 1102 1023 950
  80 4.500 0.337 1596 1596 1596 1482 1377
  160 4.500 0.531 2611 2611 2611 2424 2552
5" 40 5.563 0.258 965 965 965 896 832
  80 5.563 0.375 1428 1428 1428 1325 1231
  160 5.563 0.625 2474 2474 2474 2296 2133
6" 40 6.625 0.280 877 877 877 814 756
  80 6.625 0.432 1379 1379 1379 1280 1189
  160 6.625 0.719 2382 2382 2382 2211 2054
8" 40 8.625 0.322 771 771 771 716 665
  80 8.625 0.500 1218 1218 1218 1131 1050
  160 8.625 0.906 2298 2298 2298 2133 1982
10" 40 10.750 0.365 699 699 699 649 603
  80 10.750 0.594 1159 1159 1159 1075 999
  160 10.750 1.125 2289 2289 2289 2124 1974

Weight Chart Of Cupro Nickel 70/30 Forged Fitting

Normal Pipe Sizes A B QTY Weight In KG
¼ 0.81 0.88 160 0.20
0.97 1.00 130 0.26
½ 1.12 1.31 100 0.57
¾ 1.31 1.5 75 0.71
1 1.5 1.81 40 1.08
1 ¼ 1.75 2.19 25 1.68
1 ½ 2.00 2.44 18 2.38
2 2.38 2.97 10 3.55
2 ½ 3.00 3.62 4 6.22
3 3.38 4.31 2 10.36
4 4.19 5.75 1 23.91

Pressure Rating Of Cupro Nickel 70/30 Forged Fitting

Pressure-Temperature
Temperature Class
    150 300
      1/4 - 1 inch. 1 1/4 - 2 inch. 2 1/2 - 3 inch.
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300
